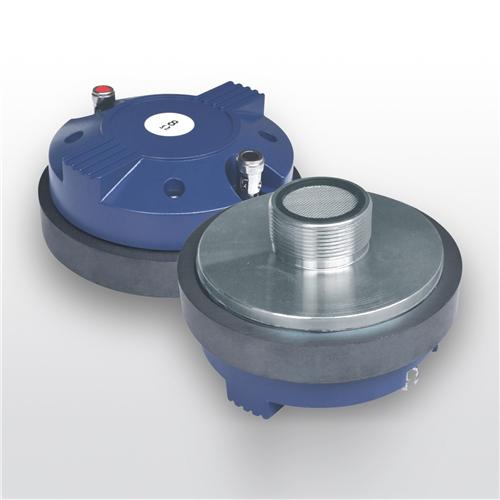

Model : PA34A

34.4MM V.C HIGH OUTPUT COMPRESSION DRIVE

Product Features: Use the best materials,advanced engineering and manufacturing methods have produced an extremely reliable and wide bandwidth device that also features very high fidelity.

Nominal Diameter	Power Rating	Voice coll Diameter	Sensitivity ( 1w/1m )
100mm/3.94in	30W	34.4mm/1.35in	106db

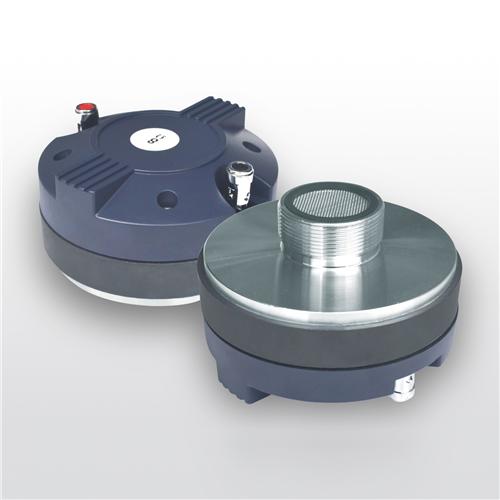

Model : PA34

34.4MM V.C HIGH OUTPUT COMPRESSION DRIVE

Product Features: Use the best materials, advanced engineering and manufacturing methods have produced an extremely reliable and wide bandwidth device that also features very high fidelity.

Nominal Diameter	Power Rating	Voice coll Diameter	Sensitivity ( 1w/1m )
90mm/3.54in	30W	34.4mm/1.35in	106db

Model : PW9000

PW SERIES POWER AMPLIFIER

Specification:

Frequency response 20Hz~20kHz
THD+N <0.05%
S/N rate >90dB
Damping Factor >100
Crosstalk >60dB
Slew Rate >10V/us
Input Sensitivity 32dB/1V/0.775V
Input Impedance(BAL/UNBAL) 2 0 KΩ/ 1 0 KΩ
Voltage gain(sensitivity: 8ohm) 40dB
Protection Soft start, VHF, DC, short circuit, over load, clip limit, over heat, progressive volume

Model : PW6000

PW SERIES POWER AMPLIFIER

Specification:

Frequency response 20Hz~20kHz
THD+N <0.05%
S/N rate >90dB
Damping Factor >100
Crosstalk >60dB
Slew Rate >10V/us
Input Sensitivity 32dB/1V/0.775V
Input Impedance(BAL/UNBAL) 2 0 KΩ/ 1 0 KΩ
Voltage gain(sensitivity: 8ohm) 40dB
Protection Soft start, VHF, DC, short circuit, over load, clip limit, over heat, progressive volume

Model : U-222VIP

WIRELESS MICROPHONE

U-222VIP UHF band 740- 820MHz, EIA standard 1U receiver chassis with two receiving channels.
With easy to read LCD display, the receiver can show RF and AF signal strength at the same time. The transmitter can show battery level, select channel, mute and set SQ level.
With AFS (auto frequency selection) function, just press up/down for 3 seconds and the receiver will auto-scan and lock on to an open, interference-free frequency.
With IR(infrared ray automatic matching) function once press the button, the transmitter can automatically look on the precise frequency of the receiver.
PII(phase lock loop frequency control) function combine with “Noise Lock” noise control

Model : MX-3.24

DIGITAL CROSSOVER SYSTEM PROCESSOR

The Processor MX3.24 utilize siate of the art DSP technologies. Beginning with 24 bit,48KHz delta-sigma A/D converters with 128X oversampling. Digital processing includes Gain. Parametric EQ, Shelving filters, Time Delay, Crossover Functions, Compression, Limiting, and Matrix Routing, all taking place in twin 120MHz Motorola DSP56362 high performance DSP processors. D/A conversion uses 24 bit delta-sigma with 128X oversampling. All inputs and outputs are precision balanced and RF protected using XLR connectors.

Model : MX-5
